| 項目 | 單位 | TH3300/TP | ||||
| A | B | C | D | |||
| 注射裝置 | Screw Diameter | mm | 200 | 210 | 220 | 230 |
| Screw L/D Ratio | L/D | 23.1 | 22 | 21 | 20.1 | |
| Shot Size(Theoretical) | cm3 | 39500 | 43610 | 47858 | 52309 | |
| Injection Weight | g | 35991 | 39685 | 43550 | 47602 | |
| Injection Rate Into Air | g/s | 1821 | 2006 | 2206 | 2350 | |
| Injection Pressure | MPa | 171.1 | 155.2 | 141.4 | 129.4 | |
| Injection stroke | mm | 1259 | ||||
| Screw Speed | rpm | 75 | ||||
| 合模裝置 | Clamping Force | KN | 33000KN | |||
| Clamping Stroke | mm | 3210 | ||||
| Space Between Tie Bar | mm | 2250×1810 | ||||
| Max. Mold Height | mm | 2010 | ||||
| Min. Mold Height | mm | 1000 | ||||
| Eject Stroke/Eject Force | mm/KN | 560/560 | ||||
| 其他 | Max. Pump Pressure | MPa | 17.5 | |||
| Pump Motor Power | KW | 226.6/245.4 | ||||
| Heat power | KW | 211 | ||||
| Hopper Capacity | L | 400 | ||||
| Oil Tank Capacity | L | 4500 | ||||
| Dimensions | m | 13900x4950x5440 | ||||
| Machine Weight | T | 190 | ||||
超大型伺服驅動兩板直鎖式注塑機按照歐洲標準設計，是通佳重工針對市場上容易成型深腔和包袱力大的形狀復雜的產品研發(fā)設計，并推薦給適用客戶使用是有著優(yōu)秀口碑的專用機型。

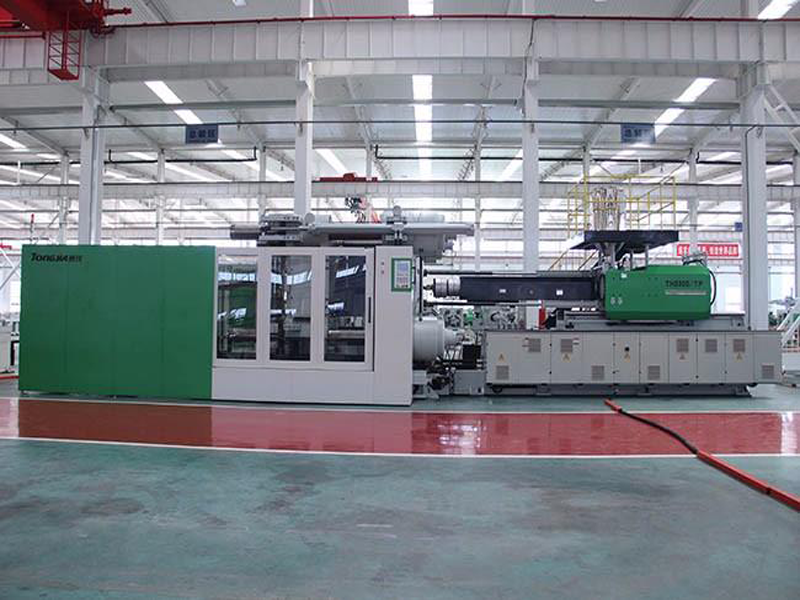

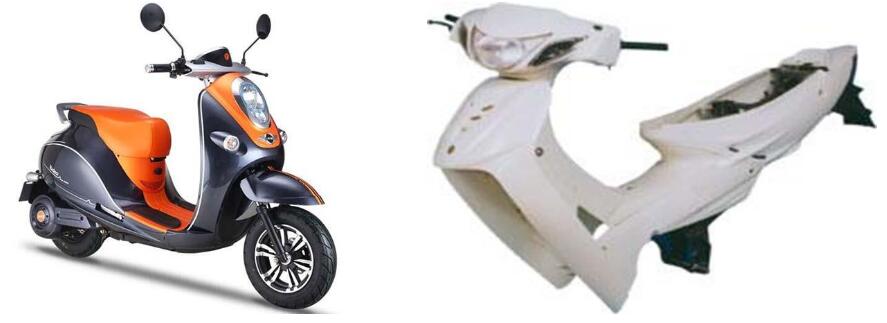

我公司TH3300/TP注塑機快速精密伺服驅動兩板直鎖注塑機式，合模精度強，開模力大，射膠機構線性支撐導向性好、射膠阻力小、易成型深腔制品、控制精準。料管組可獨立拆除。該系列機型適用于生產如塑料沙灘椅、汽車中控儀表臺、汽車配件、大型塑料檢查井、大型塑料管件、電動車車殼等多行業(yè)深腔、形狀結構復雜的中大型塑料制品。
